Tire changer S-T850M

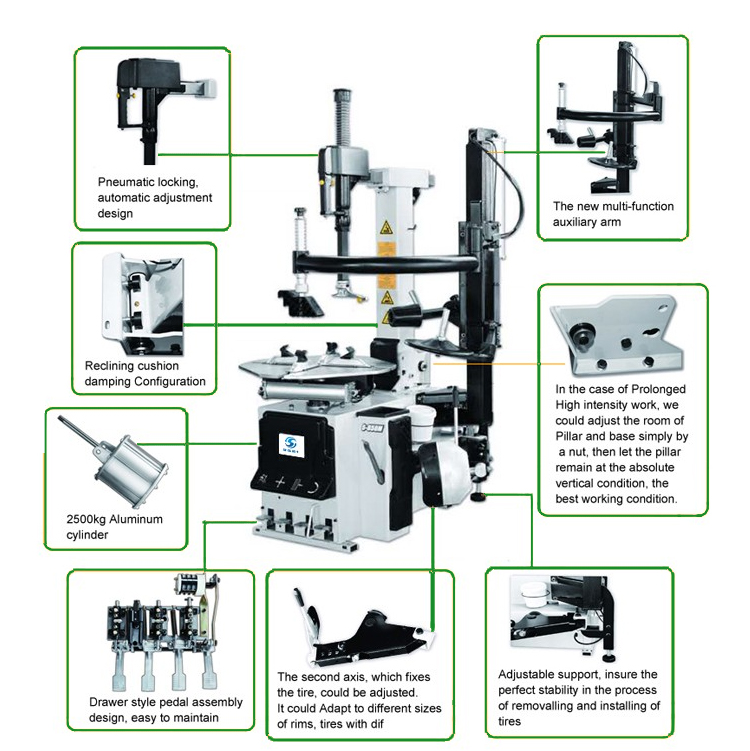

1. pneumatic locking, automatic adjustment design
2. The new multi-function auxiliary arm
3. Reclining cushion damping Configuration
4. 2500kg Aluminum cylinder
5. the case of Prolonged High intensity work, we could adjust the room of Pillar and base simply by a nut, then let the pillar remain at the absolute vertical condition, the best working condition.
6. Drawer style pedal assembly design, easy to maintain
7. The second axis, which fixes the tire, could be adjusted. It could Adapt to different sizes of rims, tires with different hardness
8. Adjustable support, insure the perfect stability in the process of removalling and installing of tires
Tire changer S-T850M parameter
| Tire changer S-T850M | Specification data |
| Rm clamping from outside | 10”-22” |
| Rm clamping from inside | 12”24” |
| Max tyre diameter | 1000mm/39.5” |
| Max tyre width | 380mm/14.5” |
| Oeration voltage | 8-10bar |
| Iflation Max pressure | 3.5bar |
| Bad breaker force | 2500kg |
| Pwer supply | 220v/380v |
| Motor Power | 1.1kw/0.75kw |
| Euipment weight | 260kg/360kg |
| Pcking | 760*975*950/1200*900*1700 |
1. pneumatic locking, automatic adjustment design
2. The new multi-function auxiliary arm
3. Reclining cushion damping Configuration
4. 2500kg Aluminum cylinder
5. In the case of Prolonged High intensity work, we could adjust the room of Pillar and base simply by a nut, then let the pillar remain at the absolute vertical condition, the best working condition.
6. Drawer style pedal assembly design, easy to maintain
7. The second axis, which fixes the tire, could be adjusted. It could Adapt to different sizes of rims, tires with different hardness
8. Adjustable support, insure the perfect stability in the process of removalling and installing of tires
