China mobile truck tire tyre changer machine

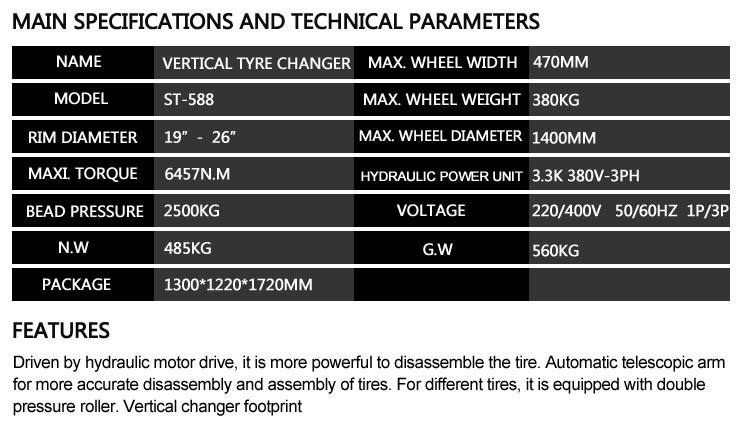

Технические характеристики шиномонтажного станка S-T588
Технические характеристики шиномонтажного станка S-T588
Технические характеристики шиномонтажного станка S-T588
Вес нетто, 485кг
Напряжение, 380 В
Мощность, 2,2 кВт

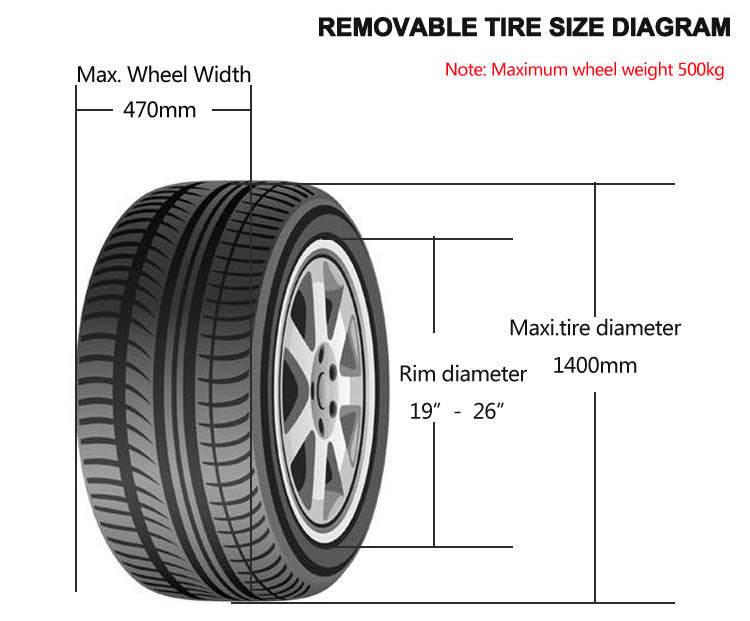

Max диаметр колеса,26 дюйм
Вес колеса, 380 кг
Max диаметр колеса,1400 мм
Max ширина колеса, 470 мм
Шиномонтажный станок для грузовых автомобилей S-T588 с максимальным диаметром диска от 19 до 26 дюймов. Универсальный шиномонтажный станок для монтажа и демонтажа бескамерных шин грузовиков, сельскохозяйственной техники и промышленного транспорта.

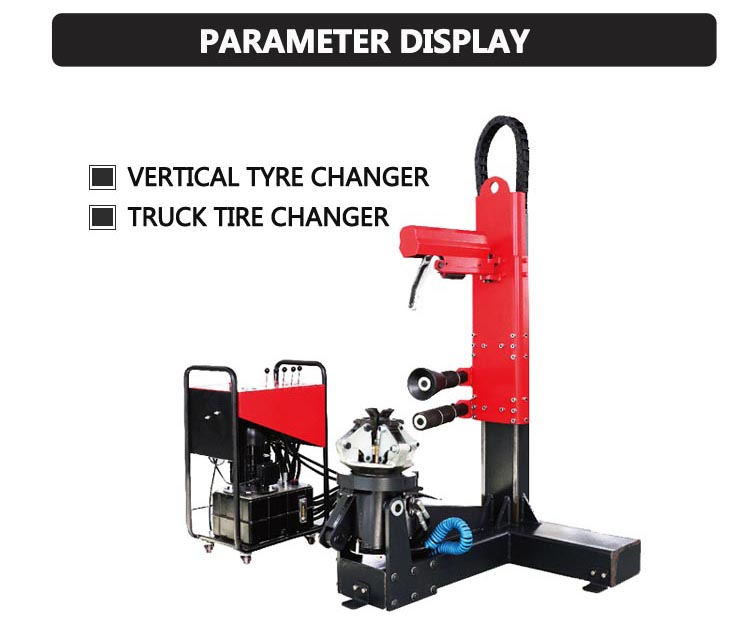

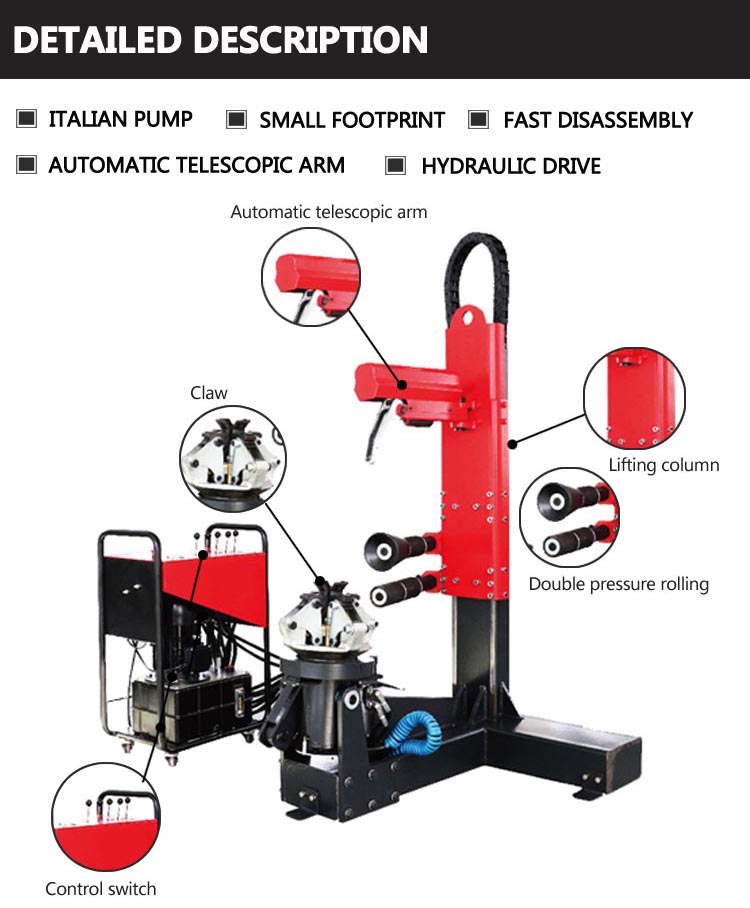

China mobile truck tire tyre changer machine PRODUCTS INTRODUCTION

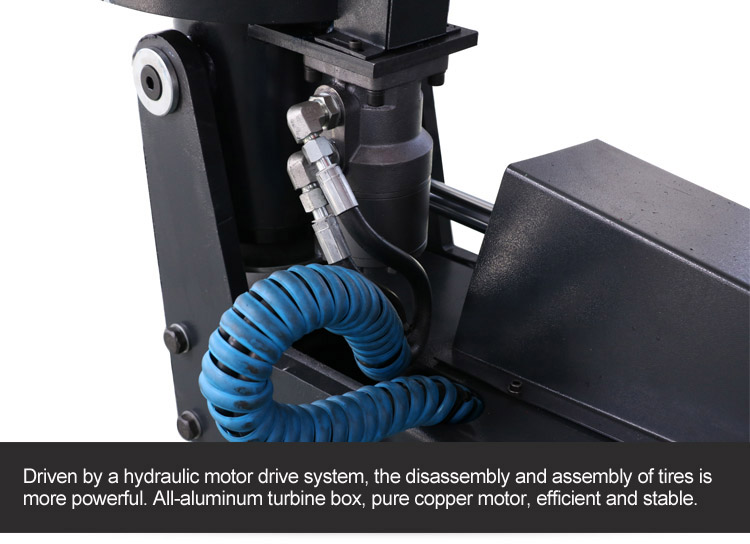

· Hydraulic motor system tyre operation much more powerful;
· Automatic hydraulic mounting arm finds precise angle;
· Double pressing roller suitable for different sizes of tubeless tyre;
· This vertical truck type changer saves more space and works more efficiency
China mobile truck tire tyre changer machine WEIGHT&DIMENSIONS
Model：Tire changer S-T588
Gross Egight（kg）：560
Outside Dimension L×W×H（mm）：1300×1220×1720
China mobile truck tire tyre changer machine Installation of tire changer :
Installation site: Choose a safe site according to the current labor safety rules.
The tire changer needs to be connected to the power grid and it is necessary to select a place where it can be easily accessed.
The installation space should be easy for the operator to operate (see Figure 2). If it is installed outdoors, a rain shelter must be installed for the machine
China mobile truck tire tyre changer machine Custody of tire changer : keep it for a long time (3-4 months) and keep it properly
(1) Lower the lift arm;
(2) Do not place the lift arm under load;
(3) Unplug the power supply;
(4) Grease the slide rails;
(5) Empty the fuel tank;
(6) Grease the cross arm of the assembly arm.
