1 safety precautions
1.1. Pleasread this instruction carefully before using the equipment. It is strictly for bidden
to operate this machine without reading this instruction.
- Remove barriers around and below the platform before working.
1.3. Lift type, lift the left, right and up and down can not stand people, lift the car al so can
not ride personnel.
- The weight of the lifted vehicle shall not exceed the lifting capacity of the lifting machine.
1.5. Lift, should be the car's manual zhi pull, pad good anti - skid triangle wood and other
anti - skid devices (user self - provided).
1.6. Only when the lock core of the four safety locks is determined to enter the squar e hole of the lock
plate, the maintenance personnel can enter the working area.
1.7 When the lift is not used, cut off the power supply.
1.8 After the lifting machine is used for a period of , e wire rope will be stretched in
different degrees to cause uneven work table. At this time, the length of the wire rope should
be adjusted in time.
1.9 The machine should be maintained in strict accordance with this manual, and the main
parts should be checked and maintained carefully.
1.10 Fire protection devices, such as fire extinguishers, should be equipped on the site of
equipment use (users' own)

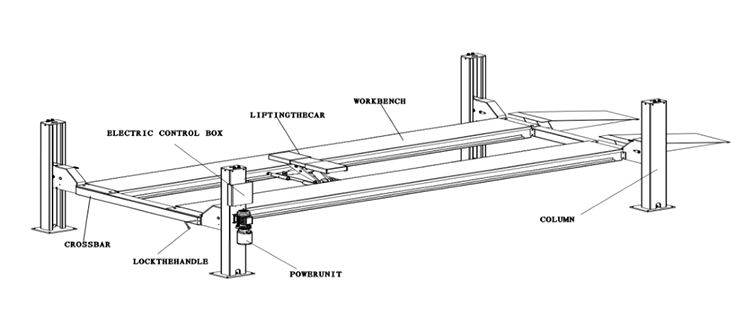

2 Characteristics of the profile
The lifting machine has been carefully designed, reasonable structure, safe and reliable,
hydraulic drive of work table, stable work, easy operation, low noise;Adopt new safety
lock and pneumatic unlock mechanism, sensitive and reliable;And equipped with a new
Parameter
3 Main Lifting Capacity:12000 kg
Platform Length:7000MM
Overall Height :2400MM
Minimum Height :220MM
Platform Width:650MM
Width Between Platforms:1100MM
Motor Power:3.0KW
Electricity Supply : 415V/50HZ/3PH
Lifting Time:110S
Max. Lifting Height:1700MM
Weight:3000KG
Note: items marked with "*" symbol can provide products with different voltages and frequencies according to user requirements (for specific parameters, please refer to the equipment label)
