Product Details

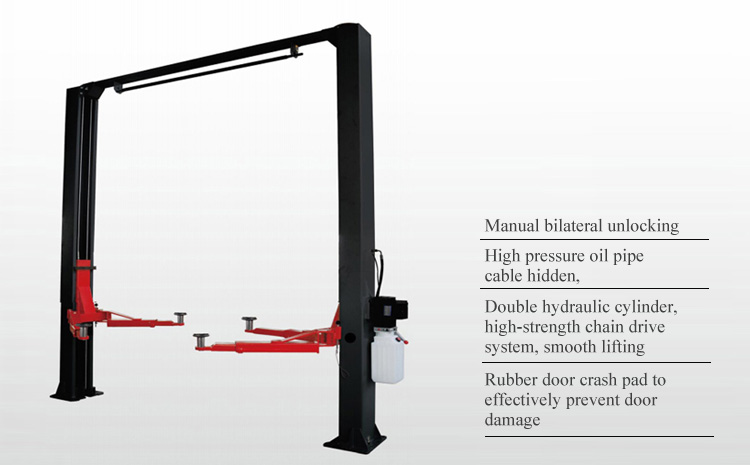

Mechanical Dual-Point Release ST-CB4000 Two Post Liift
| Mechanical Dual-Point Release ST-CB4000 Two Post Liift | |
| Capicity | 4000kg |
| Lifting Height | 1800mm |
| Lifting time | 60-65S |

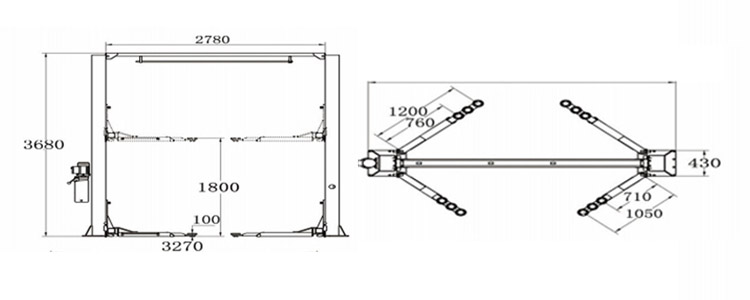

| Overall width | 3270mm |
| Overall height | 3680mm |
| Inside column | 2780mm |
| Voltage | 380V/220V/110V |
| Motor power | 2.2KW |
| Rated oil pressure | 20Mpa |
| Noise | ≤80dB |
ST-CB4000 Two Post Liift Package
1.Machine package size 2. Motor unit package size
length -----------3650mm length ---------820mm
width -----------450mm width -------- 310mm
height-----------700mm height -------250mm
weight ---------540kg weight -----22kg
Total Weight : 562kg
Post Lift Product Description
This machine is the largest domestic sales of a lift. With stable and reliable quality and reasonable price, it is an ideal lift for small and medium-sized repair factories.
Designed in accordance with international standards, the appearance is elegant. The verticality is good and the overall feeling is strong. Easy to install.
Designed according to international standards, in line with popular needs.

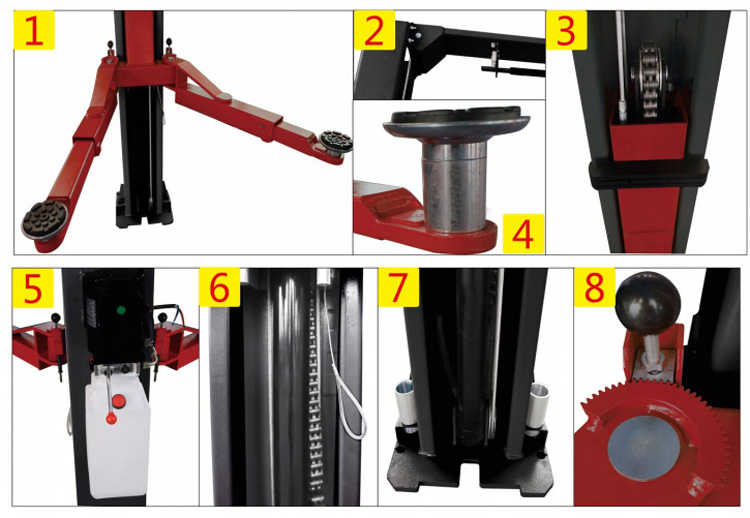

Double cylinder drive, chain, sprocket drive, smooth lifting.
A full-length protective cover is installed at the front end of the column to protect the safety of vehicle maintenance personnel.

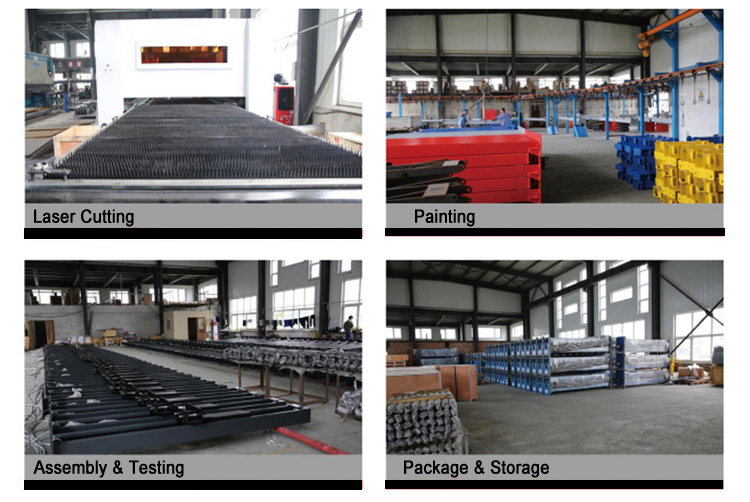

Post Lift Factory
