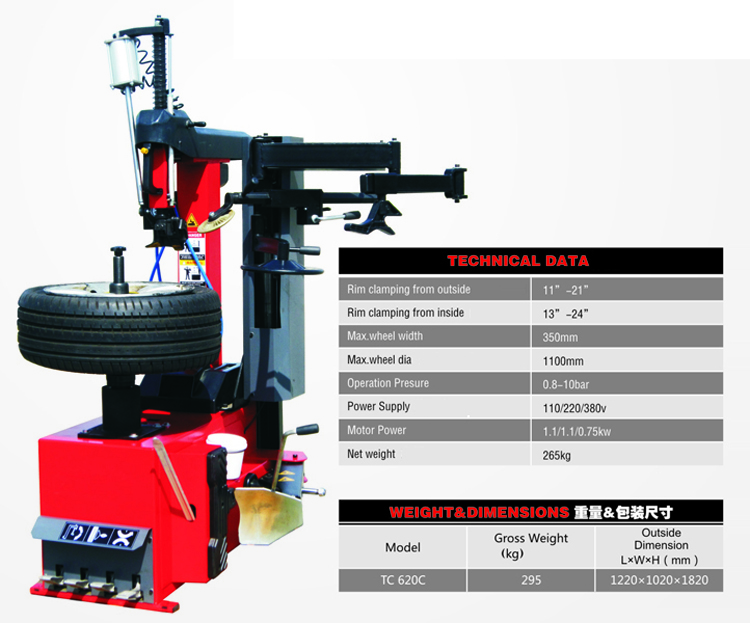

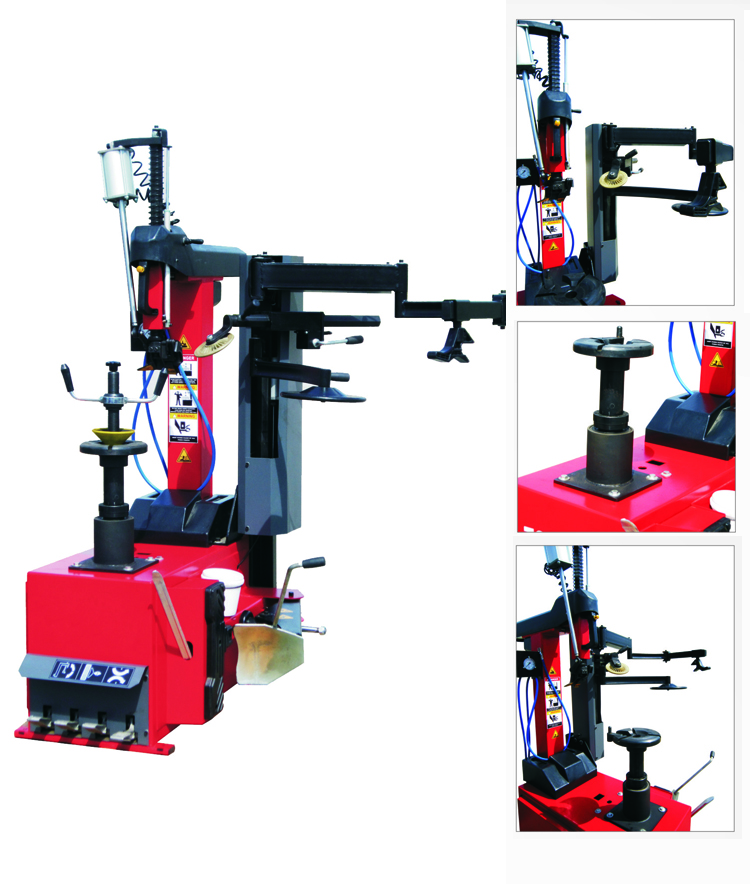

Tire Changer S-T620C

Tire changer S-T620C parameter

Rim clamping from outside 11”-21”
Rim clamping from inside 13”-24”
Max wheel weight:350mm
Max wheel dia:1100mm
Operation Presure:0.8~10 bar
Power Supply:110/220/380V
Motor Power:1.1/1.0/0.75 kw
Net weight:265kg

Weight &Dmensions
Gross Weight:295 kg
L*W*H:1320*1020*1820mm

Tire changer S-T620C advantage

This machine using backward curved sliding arm, equipped with auxiliary arm.
advanced product design, rational structure, superior performance; suitable for disassembly thicker tires, flat tires.
new aluminum frame pedals, compact, durable, and easy maintenance.
Advanced stainless steel working head, thickening body.Internal structure: shovel tire cylinders, diameter 186mm, more pressure

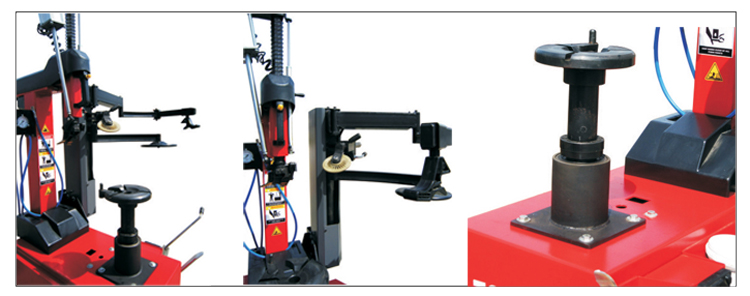

Equipped with the right auxiliary arm, height of pressing tyre can be adjusted.
Tire can be small to large full-disassembly.
Precision hexagonal steel slide makes the equipment not easy to damage.
Main Workbench: tires mainly dismantled on the bench. played a role of tire placement, and rotation so on.
Isolated arm:on the side of tire changer.using for tire and rim separation, and making remove the tire smoothly.

Deflation device: deflate the gas for tire disassembly smoothly.
4 pedals: clockwise counterclockwise rotary switch, switch for intensify separation, separation of rim and tire switch
Lubricating fluid: Contribute to tire disassembly;reduce damage during Disassembly; better finish tire disassembly work.
