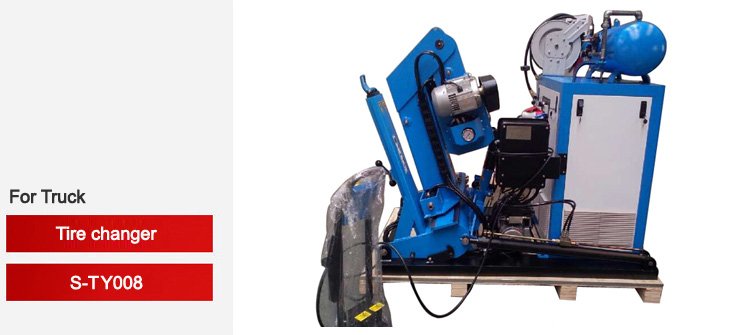

Tire changer S-TY008
TECHNICAL DATA
| Rim Diamter | 13" - 26" |
| Max.wheel weight | 700kg |
| Max Wheel Width | 600mm |
| Max Tyre Diameter | 1300mm |
| Hydraulic Pump Motor | 1.1KW |
| Gearbox Motor | 1 |
| Bead Breaker Force | 2500kg |
| Power | 220/400V 50/60HZ 1P/3P Optional |
DIMENSIONS OF VAN'S DOOR
| Min.height of Machines Chassis to the Top of the Door | 1450mm |
| Min.Tidth of Inner Van | 1650mm |
| Min.Width of Door | 980mm |
| Thick of Van | ≤160mm |
| Chassis of Van to Floor | ≈700mm |
PRODUCT FEATURES
· S-TY008 is an electro hydraulic tyre changer for trucks、buses and tractors
· Equipment with a powder generator optional
· S-TY008 can be run in the workshop and is suitable for mobile service
· Italian pump optional

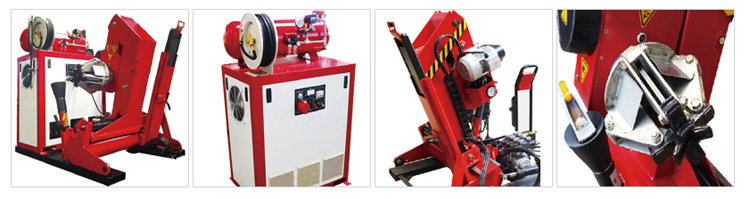

PRODUCTION DETAILS
WEIGHT&DIMENSIONS
Model：S-TY008
Gross Weight（kg）：580
Powder Generator & Air Compressor & Machines（kg）：880
Outside Dimension L×W×H（mm） 1160×1000×1550 1700×1100×1650
