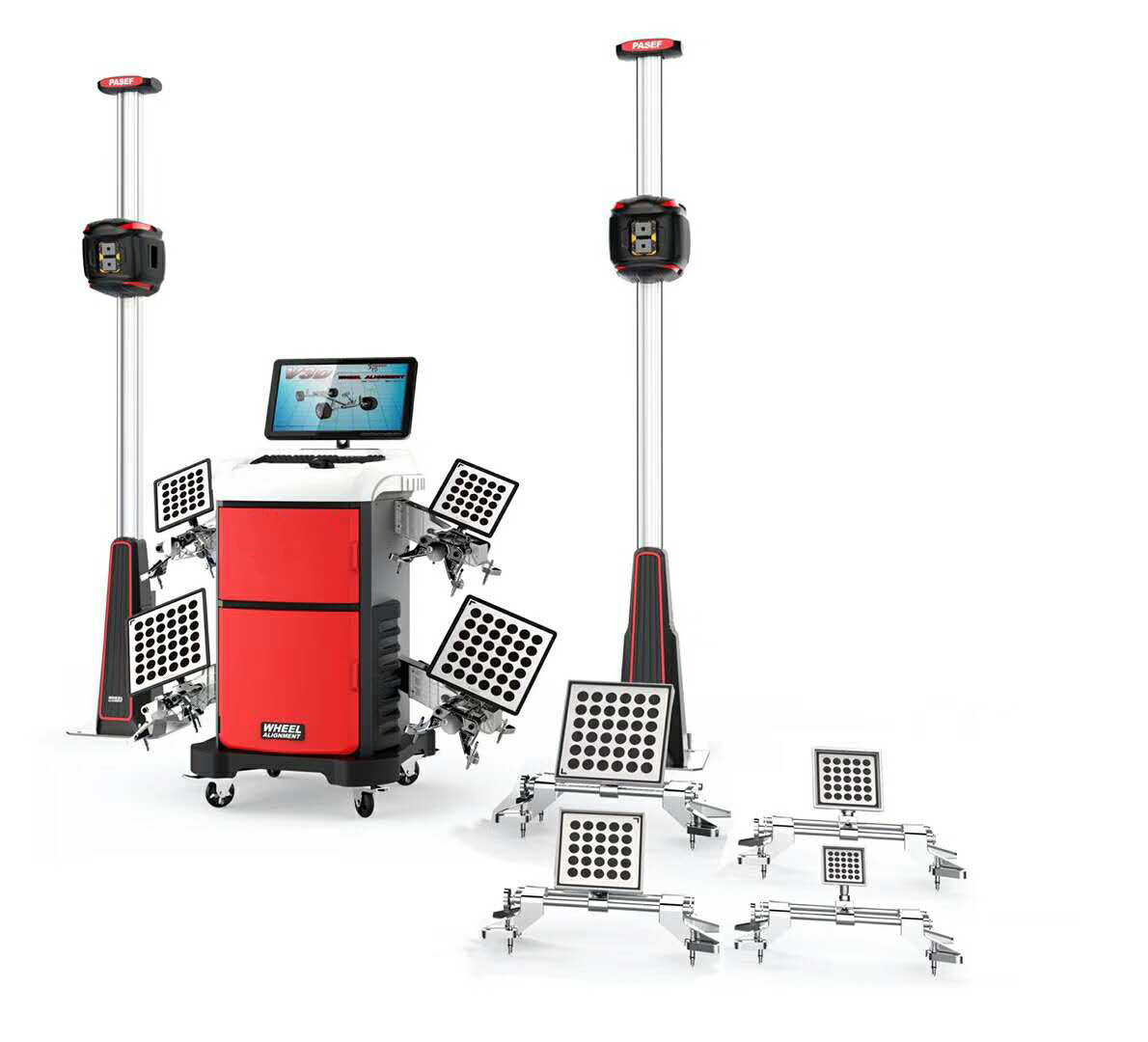

Standard Accessories
5D High Precision Camera Assemblies (2PCS)
Manual Type Lifting Column (2PCS)
Target (6PCS)
Target (8PCS) (Optional)
Clamp (3 pairs)
Inside-Hole Clamp (1 pair)
Ultra-thin Turntable (1 pair)
High quality miniature Lenovo computer (1set)
Mobile type power supply (1PCS)
Fashion Cabinet (1set)
Power outlet (1PCS)
| Technical Parameter | ||
| Measurement Item | Accuracy | Measurement Range |
| Display Accuracy | 1’/0.01°/0.1mm | |
| Camber | ±2 | ±10° |
| Caster | ±2 | ±20° |
| King-pin | ±6 | ±20° |
| Wheel Toe | ±2 | ±20° |
| Set Back | ±2 | ±5° |
| Thrust angle | ±2 | ±5° |
| Track Width | ±2mm | 1100-2600mm |
| Wheelbase | ±2mm | 2000-15000mm |
| Trailers | ±2mm | 2000-15000mm |
| Max-turn | 0.05° | ±50° |
Features:
- Double three-dimensional six-target measurement: Multi-target simultaneous measurement of multi-axis carts, which is more time-saving and more accurate. The size of the car and carts is compatible, in addition to being compatible with the four-wheel positioning of the car, the new carts 5D can solve a variety of vehicle position problems.
- Towing and double mode adaptation: the tractor and trailer are compatible with the measurement mode, and one machine can realize the measurement of the front and trailer. It can quickly switch between two-axis and multi-axis measurement modes for easier measurement.
- Convenient maintenance: Maintenance and calibration is very convenient, just send the camera back, save time and trouble, get rid of the troubles of beam transportation.
- No calibration required: The two heads always become self-standard, no need for cumbersome calibration on site, and high stability.
- Wheelbase distance measurement mode: It can accurately measure the wheel distance and wheelbase distance, and wheel axle difference function, so that the technician can intuitively understand the condition of the car chassis and it is quite effective for the accident car inspection.
