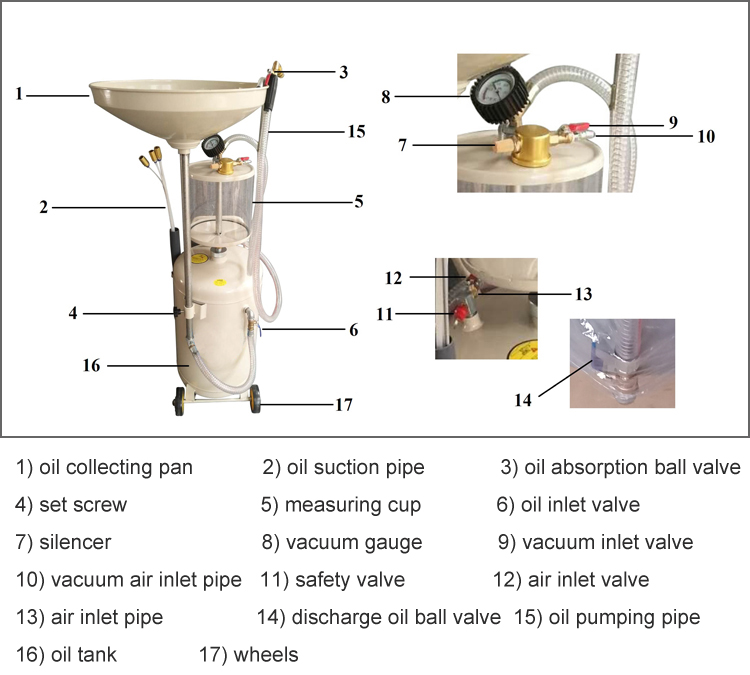

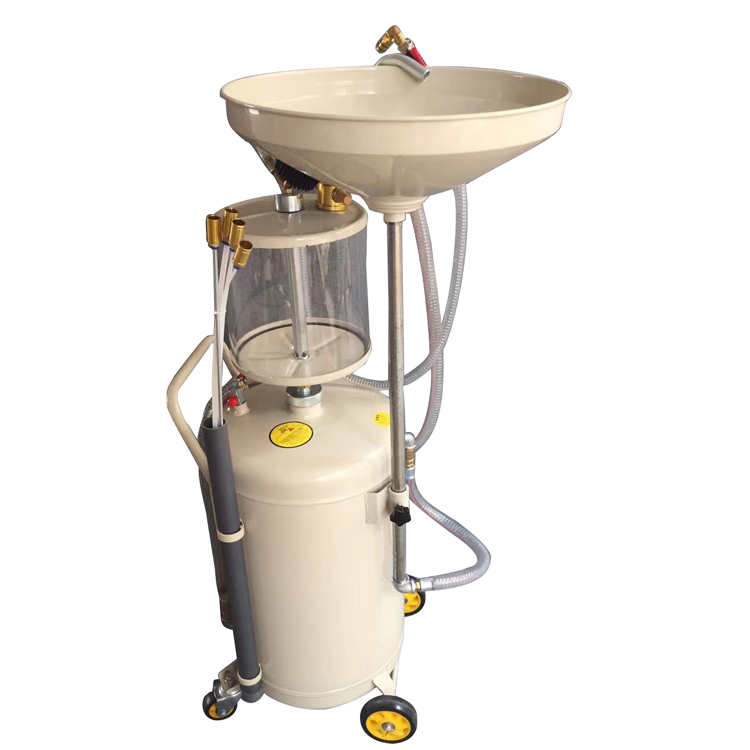

Waste Oil Drain Tank

Name: waste oil drain tank
Function: collector oil
Material: Iron
Color: Red gray or customized
Packing: 1pcs/ctn
1) Vacuum Degree : 0-0.8bar
2) Working pressure : 6-8bar
3) Volume of Measuring cap and oil collecting pan : 10L
4) Volume of oil tank : 80L
5) Medium : motor oil or gear oil
6) N.W/G.W. : 22.5kgs/24.0kgs
Supply Ability:
10000 Piece/Pieces per Month















































































































































































Features

1. Additional large oil tray convenient for oil collecting.
2. Easy use to drain oil in low pressure.
3. Different type of nozzles is equipped for various candition.

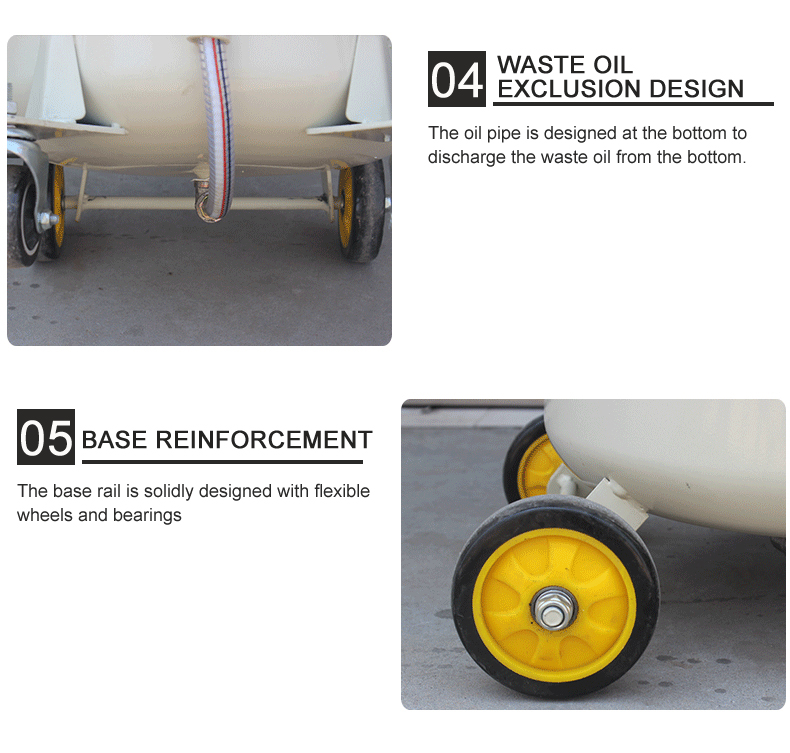

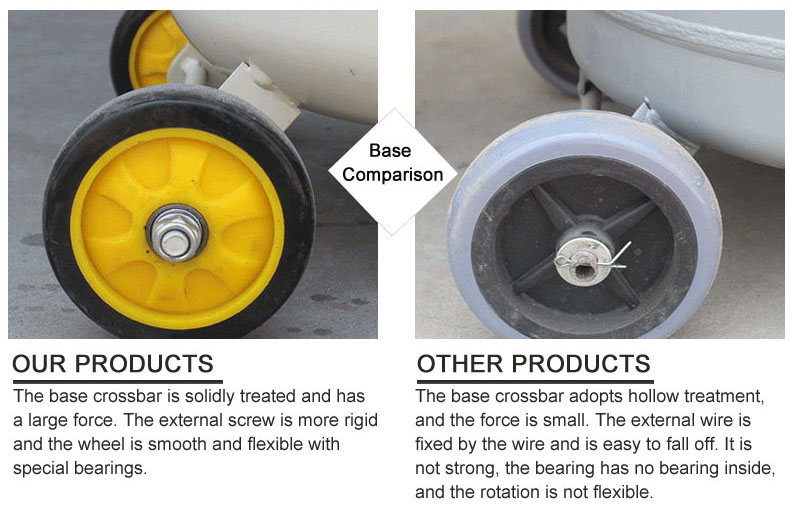

4. Fitted with heavy-duty wheels and castors for easy mobility.

Important Notice

1. The device can be operated only by trained qualified personnel
2. Never to smoking nearby the device
3. 60-100℃ is suitable for the temperature of waste engine oil pumped
by the device . If in the range of 60-100℃, the oil collecting machine can
working normally . If under this temperature , it will doesn’t work or
speed of pumping oil slowly .
4. The air compressor of the oil collecting machine can reach an air
pressure of 10bar. The air pressure of the pipeline is not less than 8 bar
when it reaches the air intake of the pumping unit. When it is lower than
this air pressure, the degree of vacuum will not be high, resulting in the
phenomenon of being unable to pump or speed of pumping slowly .
5. When the above two points are met, it is necessary to pay attention to
the most suitable pumping pipe. The copper pipe has the characteristics
of good flow-ability , and the flexibility of the plastic pipe is good. The
large
